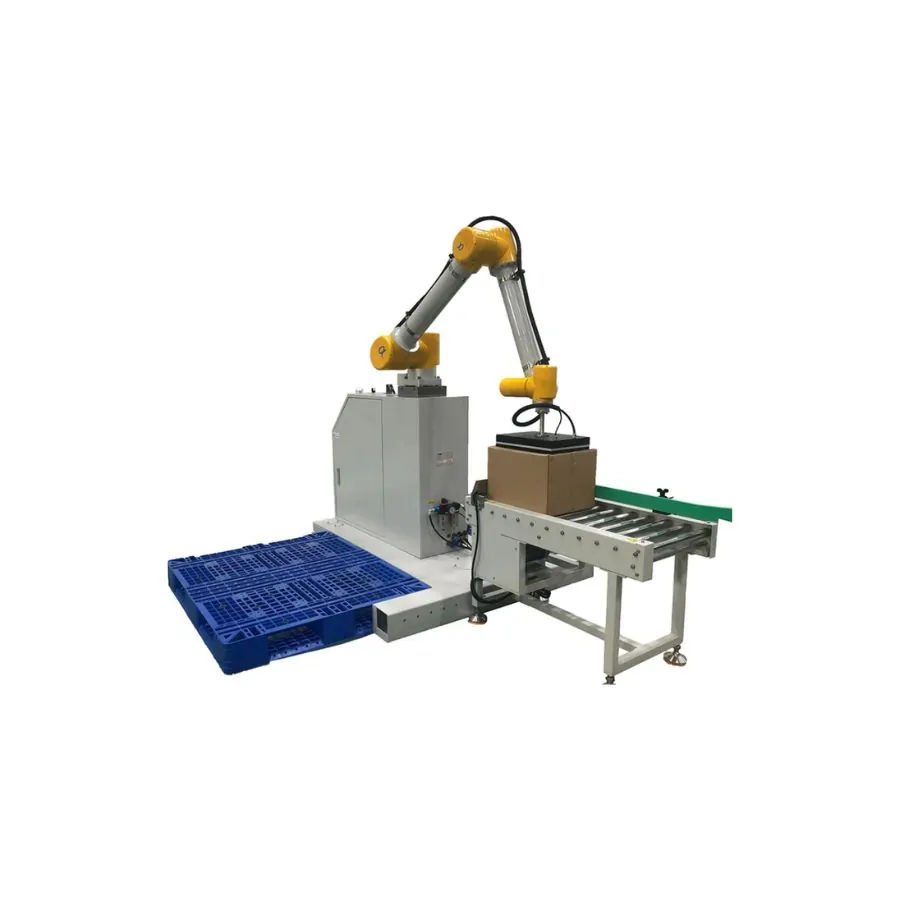

The Single Palletizer System

  • Hotline: 0965 800 166

Overview of a Single Palletizer System

A single palletizer system is an automated palletizing solution that uses a robot or a specialized gripper mechanism to pick and place products onto pallets according to predefined patterns.

Key features:

  • Compact design, saving factory floor space
  • Easy installation, maintenance, and operation
  • Smooth movement with high precision
  • High load capacity with stable operation
  • Capable of handling multiple pallets simultaneously
  • Flexible for various product types: cartons, bags, pails, plastic trays, etc.

Palletizer

Operating Process of a Single Palletizer System

The single palletizer system operates in a closed-loop process:

  • Products (cartons, bags, pails, etc.) are conveyed to the palletizing position
  • Sensors detect and accurately locate the product positions
  • The robot moves, and the gripper lowers to clamp or vacuum-pick the products
  • Products are transferred to the pallet and stacked according to a pre-programmed pattern
  • Once the pallet is full, the system automatically discharges it and starts a new cycle

This process ensures high speed, precision, and continuous operation.

Robot Palletizer tự động

Single Palletizer System with Flexible End-Effector Configurations

The single palletizer system can be integrated with various types of end-effectors (gripper tools) to suit different product types:

  • Vacuum grippers for carton boxes
  • Mechanical grippers for bags and packaged goods
  • Specialized grippers for pails and uniquely shaped containers
  • Custom-designed tooling based on specific product requirements

Thanks to this flexibility, the system can quickly adapt to a wide range of industries and applications.

Technical Specifications

Power Supply 3 pha, 380V, 50/60Hz, 12,5 kW
Compressed Air Pressure (optional) 0.5-0.7 MPa
Dimensions 7900 x 5150 x 3750 mm
Speed Up to 18 products/minute
Pallet Sizes 1100 x 1100mm, 1200 x 1000mm, 1000 x 1000mm

Applications

The single palletizer station is widely used in:

  • Food & Beverage
  • Consumer Goods
  • Healthcare & Chemicals
  • Machinery & Hardware

Its ability to handle a wide variety of products makes it easy for businesses to deploy across different production lines.

Benefits of Investing in a Single Palletizer System

  • Optimized investment cost: Suitable for small and medium-sized businesses or medium-capacity production lines
  • Space-saving design: Single-station layout reduces installation footprint
  • Increased productivity and stability: Continuous operation with reduced dependence on manual labor
  • Improved workplace safety: Eliminates heavy manual lifting and stacking tasks
  • Scalable and flexible: Easy to upgrade or integrate with additional equipment in the future
