WP-30S Collaborative Palletizing Robot

Highlights

Model WP-30S

Maximum Payload 30 kg

Working Radius 1480 mm

Maximum Palletizing Speed ≤ 8 packages/min (8 PCS/min)

Maximum Power Consumption 3.5 kW

Compressed Air Consumption 240 – 460 L/min

Power Supply Requirement 220V ±10%, 50Hz ±5%

Compressed Air Pressure Requirement 0.5 – 0.7 MPa

Support Center (8:00 - 17:00)
  • Hotline 1: 0866 533 986
  • Hotline 2: 0965 800 166

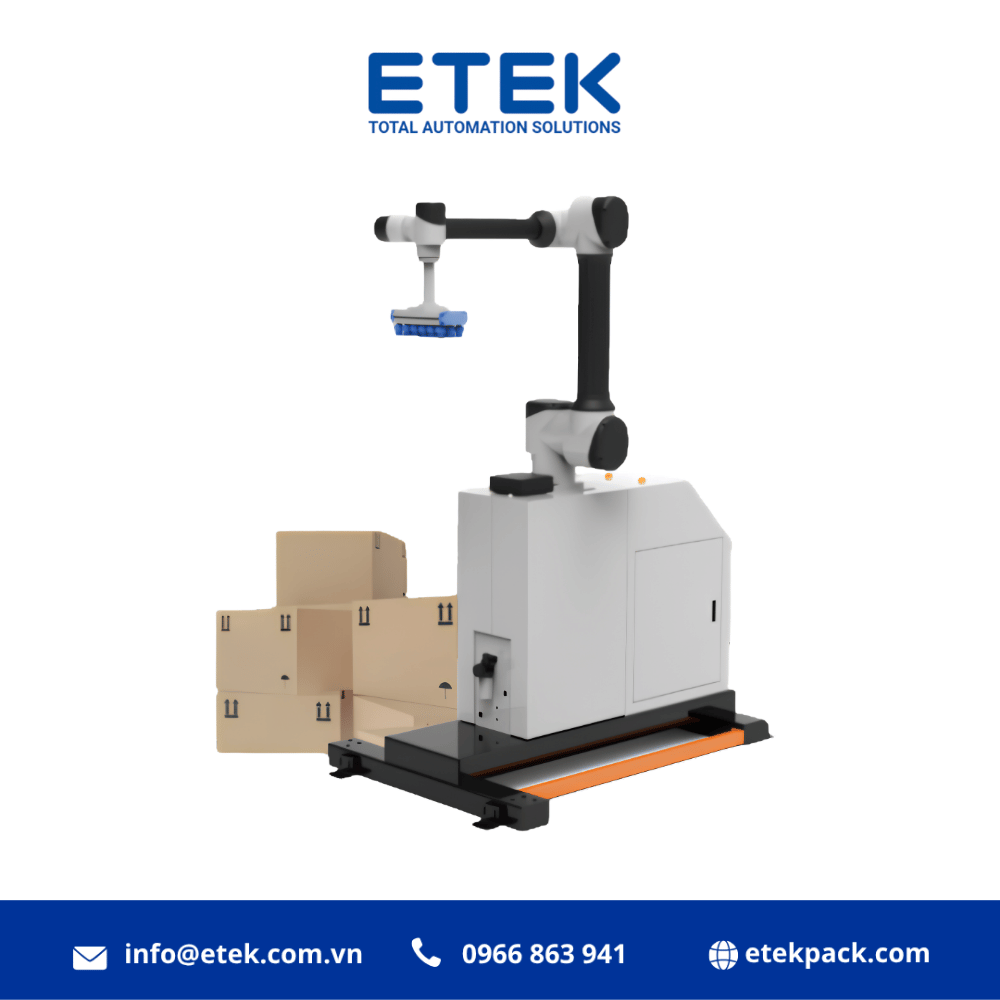

What is the WP-30S Collaborative Palletizing Robot?

The WP-30S Collaborative Palletizing Robot is a specialized cobot system engineered for end-of-line palletizing operations. Featuring a dual-station layout (left-right), the robot enables non-stop, continuous palletizing: once a pallet on one side is fully stacked, the cobot automatically switches to the adjacent station while an operator safely removes the loaded pallet and places a new empty one.

Automated Operational Process:

  • Infeed Handover: An infeed conveyor delivers carton cases or packages to the pickup station.
  • Gripping & Positioning: The end-of-arm tooling (vacuum suction or mechanical gripper) picks up packages with an exceptional repeatability accuracy of ±0.04mm.
  • Pattern Palletizing: The cobot arm stacks packages onto the pallet according to pre-programmed stacking patterns, reaching a maximum stacking height of up to 2150mm.
  • Flexible Station Switching: Dual-station configuration (left-right) allows 24/7 continuous operation without downtime for pallet replacement.

Machine Applications

The WP-30S Collaborative Palletizing Robot offers flexible end-of-arm tooling options, making it widely applicable across various manufacturing and logistics sectors:

  • Food & Beverage: Stacking cases containing soft drinks, beer bottles, confectionery, canned goods, and dairy boxes.
  • Personal Care & Household Chemicals: Palletizing cases of shampoo, laundry detergent, fabric softener, and household cleaners.
  • Pharmaceuticals & Healthcare: Stacking standard boxed pharmaceutical products and medical devices.
  • Chemicals & Agriculture: Palletizing bags and boxes of plastic granules, fertilizers, and industrial chemicals.
  • Logistics & Distribution Centers: Sorting and palletizing boxed goods in distribution and fulfillment hubs.

Technical Specifications

Item Specification
Model WP-30S
Maximum Payload 30 kg
Working Radius 1480 mm
Maximum Palletizing Speed ≤ 8 packages/min (8 PCS/min)
Maximum Stacking Height ≤ 2150 mm
Repeatability Accuracy ±0.04 mm
Pallet Layout Manual loading, dual-station layout (1 Left – 1 Right)
Maximum Pallet Dimensions 1000 × 800 mm
External Equipment Dimensions L1732 × W1200 × H2390 mm
Wooden Packaging Dimensions L2200 × W1450 × H1900 mm
Maximum Power Consumption 3.5 kW
Compressed Air Consumption 240 – 460 L/min
Power Supply Requirement 220V ±10%, 50Hz ±5%
Compressed Air Pressure Requirement 0.5 – 0.7 MPa
Communication Protocol EtherCAT Communication, I/O Expansion
Ingress Protection Level IP54
Ambient Temperature Range 0°C – 50°C
Total Equipment Weight Approx. 600 kg

Key Advantages

  • High 30kg Payload & Wide 1480mm Reach: Effortlessly handles heavy cases up to 30kg with an impressive stacking height of 2150mm.
  • Flexible & Efficient: Compact footprint allows easy relocation and installation into tight plant floors without major modifications to existing lines.
  • Dual-Station Layout: Maximizes continuous uptime and increases overall plant packaging productivity.
  • Ultra-High Accuracy (±0.04mm): Guarantees neat, square, and stable pallet layers, minimizing the risk of collapse during transit.
  • Economical & Practical: Cost-effective investment with low power consumption (3.5kW) and convenient 220V single-phase power supply support.
  • Smart EtherCAT Connectivity: Easily integrates and synchronizes data with central PLC controllers, Warehouse Management Systems (WMS), or Manufacturing Execution Systems (MES).

Business Benefits

  • Eliminates Heavy Manual Labor: Replaces strenuous manual lifting, reducing labor expenses and workplace injury risks.
  • Saves Factory Floor Space: Collaborative safety features eliminate the need for bulky safety fences required by traditional industrial robots.
  • 24/7 Continuous Operation: Dual pallet stations maintain an uninterrupted production flow.
  • Enhanced Pallet Aesthetics: Consistently produces neat, stable pallet stacks up to 2.15m high, ready for stretch wrapping and dispatch.

Why Choose ETEK as Your Supplier?

ETEK specializes in:

  • Comprehensive automated packaging solutions
  • Custom consulting, engineering, and system integration
  • On-site installation, commissioning, and operational training
  • Maintenance, warranty services, and genuine spare parts supply

Our Commitments:

  • Stable machine operation with long service life
  • Optimized investment costs
  • Solutions tailored to your exact industry needs
  • 24/7 technical support partnership

Contact Us for Consultation and Quotations

Let ETEK partner with your enterprise in optimizing your packaging operations. Contact our Hotline today at 0866 533 986 for expert consultation and a detailed quotation for the WP-30S Collaborative Palletizing Robot.
