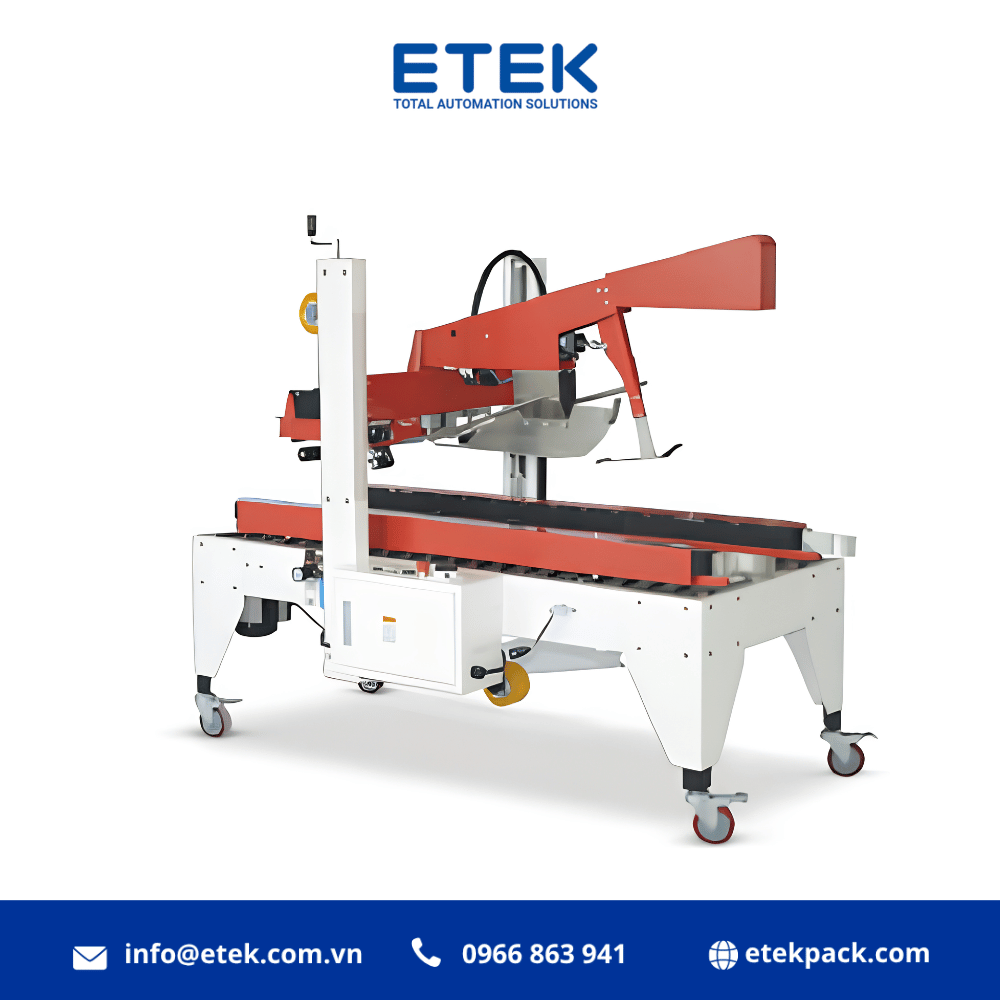

FC500 Flap Folding and Carton Sealer
Model FC500
Conveyor Speed 20 m/min
Tape Size Width 48 – 72 mm (BOPP, Self-adhesive Kraft paper…)
Overall Dimensions (L×W×H) 1700 × 930 × 1500 mm
Power Supply 220V / 380V, 50 Hz
Air Consumption Requirement 6 kgf/cm²; 40 L/min
- Hotline 1: 0866 533 986
- Hotline 2: 0965 800 166
The FC500 automatic flap folding and carton sealing machine belongs to the advanced semi-automatic category, delivering a breakthrough for the carton finishing process. Completely distinct from standard sealing machines, the FC500 features an automatic upper flap folding mechanism before simultaneously sealing both top and bottom flaps. As a result, businesses eliminate manual flap folding entirely, saving labor costs and optimizing packaging efficiency.
Operating Mechanism of the FC500 Flap Folding and Carton Sealer
The FC500 is equipped with a specialized pneumatic system combined with precision mechanics, seamlessly automating the cartoning process:
- Smart Automatic Top Flap Folding: The mechanical folding arm integrated with a pneumatic cylinder automatically folds the four upper flaps cleanly before the carton enters the taping head.
- Stable Bottom-Side Drive: The lower double-side belt conveyor system securely holds and pulls the carton smoothly at a speed of 20 m/min.
- Simultaneous Top and Bottom Sealing: Automatically and securely seals both top and bottom flaps in a single pass, ensuring straight, tight, and aesthetic tape seals.
- Flexible Line Integration: Easily connects directly with a Case Erector or integrates into existing factory conveyor systems.
- High-End Taiwanese Components: Key mechanical components, electrical, and pneumatic systems are imported from Taiwan, ensuring heavy-duty performance and long-lasting durability in industrial environments.
Technical Specifications of FC500 Flap Folding and Case Sealer
| Parameter | Detailed Specifications |
| Model |
FC500 |
| Category |
Advanced Semi-Automatic (Auto Flap Folding & Dual-Side Sealing) |
| Minimum Carton Size (L × W × H) |
200 × 120 × 120 mm |
| Maximum Carton Size (L × W × H) |
600 × 500 × 500 mm |
| Conveyor Speed |
20 m/min |
| Tape Size |
Width 48 – 72 mm (BOPP, Self-adhesive Kraft paper…) |
| Overall Dimensions (L × W × H) |
1700 × 930 × 1500 mm |
| Power Supply |
220V / 380V, 50 Hz |
| Air Consumption Requirement |
6 kgf/cm²; 40 L/min |
Applications of FC500 Flap Folding and Carton Sealer
The FC500 model is a strategic investment for factories looking to upgrade from basic semi-automatic machines to a higher level of automation:
- Specialized for Food & Beverage (F&B): Ideal for packaging lines handling confectionery, canned foods, beverages, dairy products, etc., requiring fast sealing speeds and food safety standards.
- Large-Scale Mass Production Plants: Highly efficient for continuous production shifts handling batches with fixed packaging specifications and carton dimensions.
- Maximum Labor Cost Savings: Operators only need to push the loaded carton into the machine; the FC500 automatically folds the flaps and seals it completely without manual intervention.
ETEK – Trusted Carton Sealing Machine Supplier in Vietnam
ETEK Automation Solutions JSC is a pioneer with over 20 years of experience specializing in consulting, designing, and providing comprehensive automation solutions in Vietnam. Choosing the FC500 automatic flap folding and carton sealer at ETEK gives you complete peace of mind with authentic products, imported high-end components, and superior implementation capabilities from an experienced engineering team. ETEK is committed to delivering cost-effective packaging solutions, supporting on-site surveys, installation, and professional nationwide warranty and maintenance services.
Contact ETEK Hotline at 0866 533 986 for detailed solution consulting and the best quotation!
