FI500 Fully Automatic Carton Sealer

Highlights

Model FI500

Conveyor Speed 20 m/min

Applicable Tape Width 48 – 72 mm (BOPP, self-adhesive Kraft paper, etc.)

Power Supply 220V / 380V, 50 Hz

Machine Dimensions (L×W×H) 1700 × 840 × 1450 mm

Machine Weight 400 kg

Support Center (8:00 - 17:00)
  • Hotline 1: 0866 533 986
  • Hotline 2: 0965 800 166

In modern production lines, optimizing labor costs and standardizing packaging processes are crucial challenges. The FI500 carton sealer was created to address these requirements thoroughly. As a fully automatic model, the FI500 not only adjusts flexibly to the dimensions of each box but also handles top flap folding and dual-side taping in a single pass.

Detailed technical specifications of the FI500 fully automatic carton sealer

Parameter Technical Specification
Model FI500
Equipment Classification Fully automatic (Flap folding & Random size adjustment)
Box Dimensions (L × W × H)

Min: 200 × 165 × 150 mm

Max: 600 × 500 × 500 mm
Drive Mechanism Lower side-belt drive system
Conveyor Speed 20 m/min
Applicable Tape Width 48 – 72 mm (BOPP, self-adhesive Kraft paper, etc.)
Power Supply 220V / 380V, 50 Hz
Pneumatic Requirement 6 kgf/cm²; 100 L/min
Machine Dimensions (L × W × H) 1700 × 840 × 1450 mm
Machine Weight 400 kg

Practical applications of the FI500 carton sealer

The FI500 sets a new benchmark for manufacturing facilities aiming for unmanned operations:

  • Smart Production Lines: Ideal for factories looking to maximize labor cost reductions and achieve 100% end-of-line automation.
  • Facilities Handling Mixed Box Sizes: Designed for facilities using multiple carton dimensions (ranging from 200 × 165 × 150 mm to 600 × 500 × 500 mm) without wasting time stopping machines for manual adjustments.
  • Easy System Integration: Highly compatible when connecting directly with automatic case erectors, strapping machines, or factory central conveyor systems.

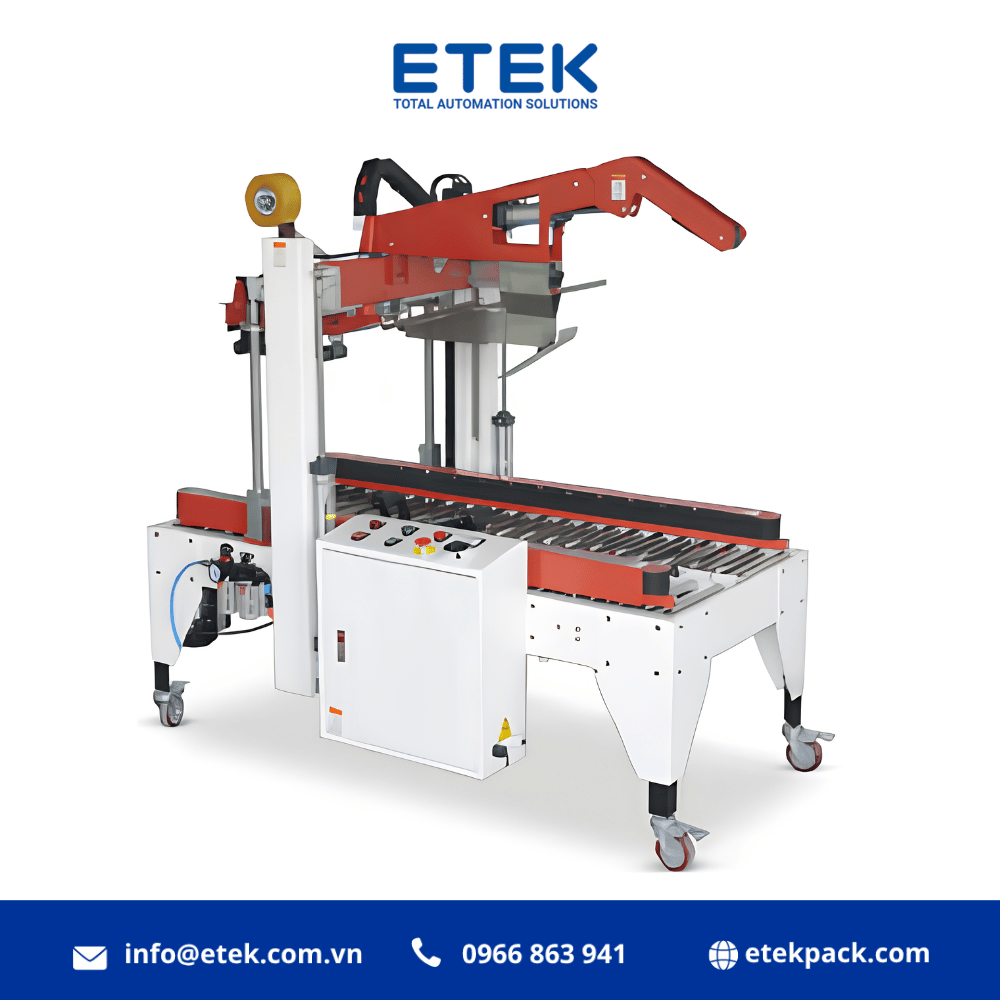

fi500-fully-automatic-case-sealer
FI500 Fully Automatic Case Sealer

Technology and operating cechanism of the FI500

Key technological features that make the FI500 an essential component in automated packaging systems:

  • Precise Automatic Top Flap Folding: The intelligent mechanical system automatically folds the top flaps accurately before taping, completely eliminating manual folding by operators.
  • Automatic Dimension Measurement & Adjustment: The machine automatically detects the height and width of each incoming carton to adjust the sealing frame instantly.
  • Sturdy Lower Side-Belt Drive System: Dual lower side belts provide a firm grip, driving cartons smoothly at speeds up to 20 m/min.
  • Simultaneous Smooth Dual-Side Sealing: Tape edges (48–72 mm widths) are applied tautly, smoothly, and squarely to both top and bottom flaps in a single cycle.
  • International Standard Components: All critical mechanical parts as well as electrical and pneumatic systems are imported from Taiwan, ensuring durability for continuous operations.

Practical benefits of using the FI500

  • Maximum Operational Cost Reductions: Significantly lowers manual labor operating expenses.
  • Enhanced Packaging Quality: Delivers uniform, aesthetic seals that provide maximum protection for internal products during storage and long-distance transport.
  • Accelerated Packaging Throughput: Maintains a steady 20m/min speed to eliminate end-of-line bottlenecks.
