APCW-016 Multi-Stage Checkweigher & Sorting Machine

  • Hotline 1: 0866 533 986
  • Hotline 2: 0965 800 166

In processing, packaging, and quality control, sorting products into different weight categories requires high speed and absolute accuracy. The APCW-016 Multi-Stage Checkweigher & Sorting Machine is a smart automation solution that automatically measures and sorts small packaged items into distinct weight ranges, completely replacing labor-intensive manual sorting.

ETEK proudly supplies authentic APCW-016 Multi-Stage Checkweighers, fully customizable with flexible sorting levels tailored to specific factory requirements.

What is the APCW-016 Multi-Stage Checkweigher?

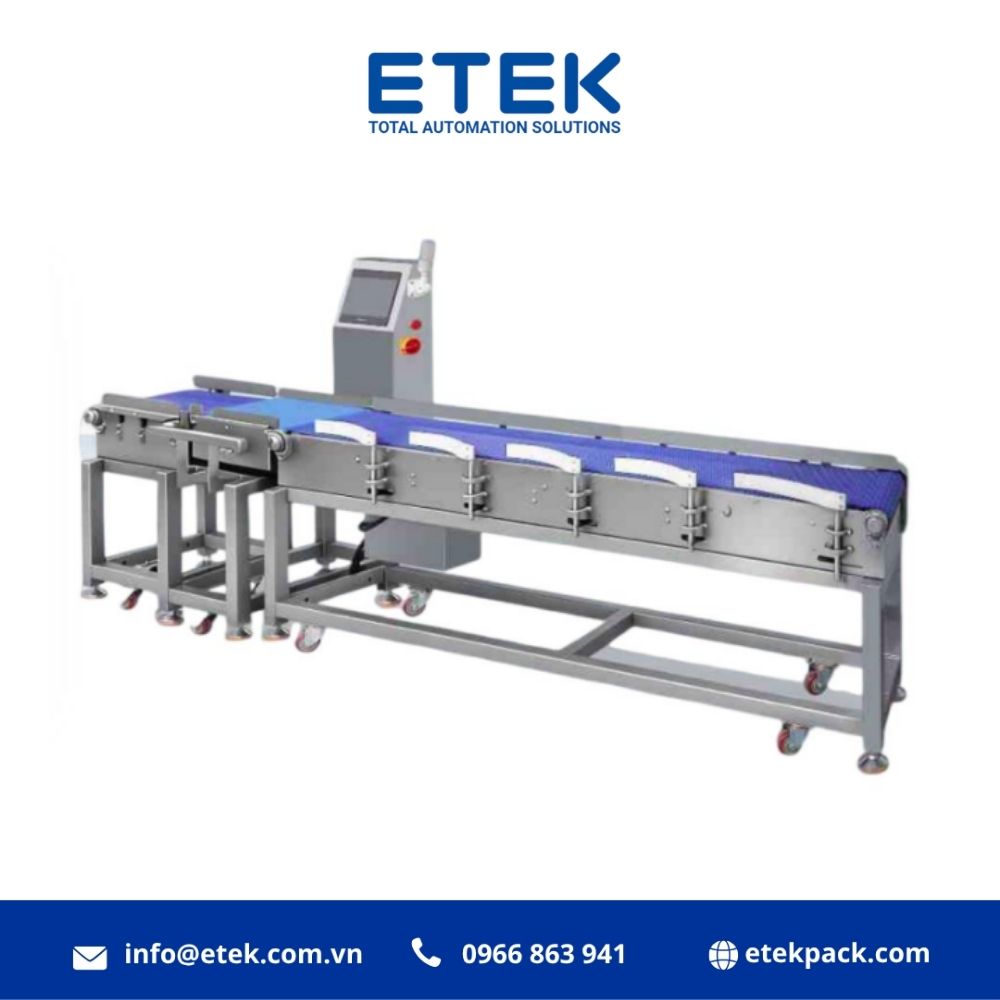

The APCW-016 Multi-Stage Checkweigher is an automated dynamic weighing system integrated with a lane-diverting conveyor. The system measures the real-time weight of each product passing over the weighing platform and automatically diverts it to the corresponding port/lane based on pre-set weight ranges.

Automated Operating Process:

  • Receiving & Dynamic Weighing: The conveyor transfers products across the 700 × 500 mm weighing section. Precision load cells accurately determine each product’s weight.
  • Analysis & Grading: The control panel receives data, compares it against target weight thresholds in the active profile, and identifies the corresponding grade.
  • Lane Sorting: The system triggers the divert mechanism to route the product to the correct port or lane based on quality standards or product tiers.

Applications

The APCW-016 is widely used to sort small packaged products (from 30 g to 1,000 g) across various industries:

  • Food & Agricultural Processing: Grading fruits, packaged vegetables, sausages, seafood, fresh/frozen meat, and dried nut pouches into weight tiers (Grade A, B, C, etc.).
  • Confectionery & Snacks: Categorizing packaged biscuits, candy bags, snacks, and small portion items by weight.
  • Pharmaceuticals & Cosmetics: Sorting blister packs, cosmetic boxes, and dietary supplement sachets according to weight specs.
  • Hardware & Small Components: Sorting bags of industrial fasteners, parts, and hardware accessories.

Technical Specifications

Parameter Specification
Model Code APCW-016
Weighing Range 30 g – 1,000 g
Weighing Table Size 700 × 500 mm
Accuracy ±10 g
Weighing Speed 4 – 40 items/min
Display Graduation 1 g
Measurement Method Belt-type
Rejection / Sorting Method Alarm stops machine / Stop weighing machine
Standard Features USB data logging port, Signal stack light & warning buzzer
Control Panel 10-inch touch screen
Power Supply 220V, 50/60Hz

Key Features

  • 10-Inch Touch Screen: Default English/Chinese interface (supports multi-language customization) for easy setup and process monitoring.
  • Flexible Sorting Levels: Customizable sorting ports/levels tailored to actual operational workflows.
  • Dynamic Zero Tracking: Supports manual or automatic zero tracking, maintaining accurate weighing even with slight dirt accumulation on the belt.
  • VFD-Controlled Motor: Easily adjust speed from 4 to 40 items/minute to synchronize perfectly with upstream feeding speed.
  • Multi-Recipe Storage: Effortlessly switch between different product profiles without losing time resetting parameters.
  • 3-Level Access Security: 3-tier user authority management with custom passwords to prevent unauthorized parameter modifications.

Business Benefits

  • Standardized Product Grading: Eliminates human error, ensuring 100% weight consistency across product tiers.
  • Enhanced Brand Reputation: Enables accurate packaging for premium graded product lines, building customer and partner trust.
  • Reduced Labor Costs: Fully automates weighing and lane distribution, replacing 3–5 manual operators at the sorting station.
  • Digital Data Management: Easily export statistical reports on product counts per weight range via the USB port.

Why Choose ETEK?

ETEK specializes in:

  • Comprehensive turnkey packaging automation solutions.
  • Customized system consultation, design, and integration.
  • On-site installation, commissioning, and operational training.
  • Maintenance, warranty, and genuine spare parts supply.

Our Commitment:

  • Reliable, long-lasting machine performance.
  • Optimized return on investment (ROI).
  • Tailored solutions aligned with your specific industry needs.
  • 24/7 technical support.

Contact Us for Consultation & Quotes

Let ETEK partner with your enterprise to optimize your packaging process. Contact our Hotline at 0866 533 986 for expert consultation and a detailed quotation for the APCW-016 Multi-Stage Checkweigher.
