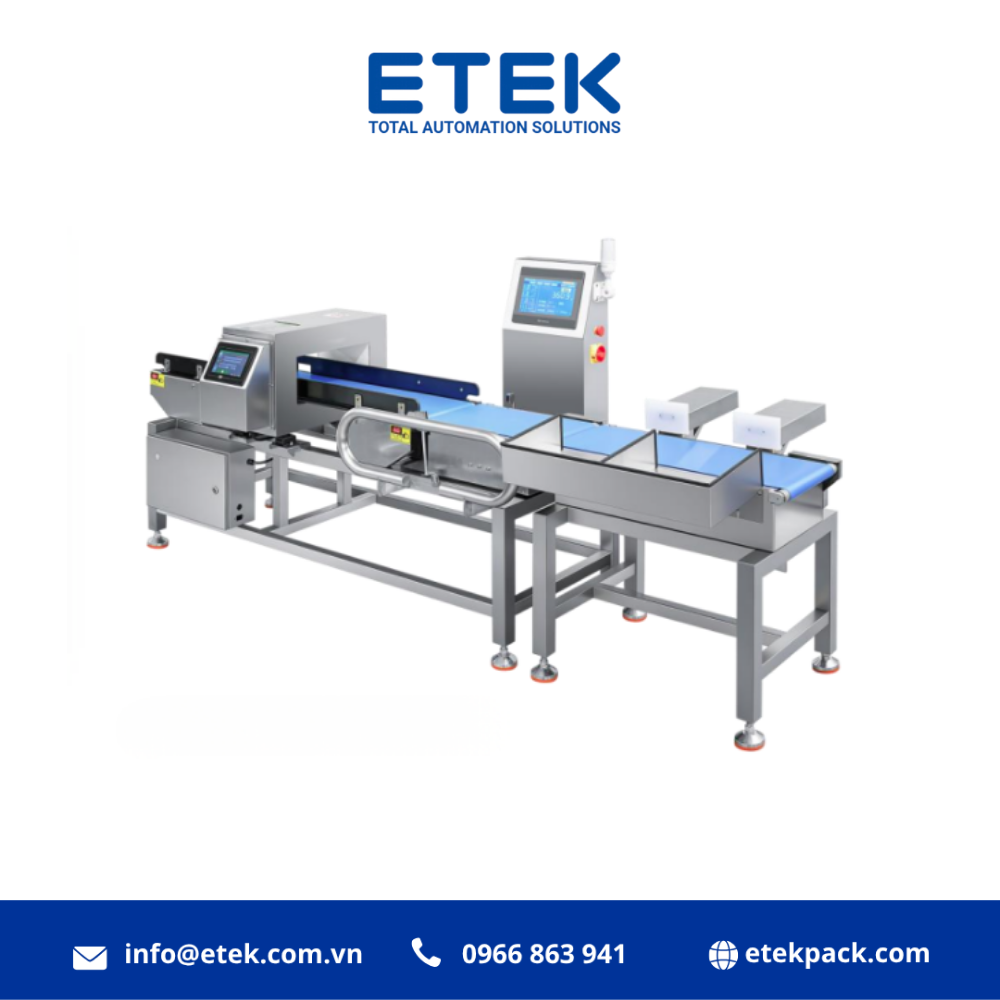

APCW-3015-Combo Combination Metal Detector and Checkweigher

  • Hotline 1: 0866 533 986
  • Hotline 2: 0965 800 166

In industrial manufacturing and packaging, inspecting metal contaminants and controlling final product weight are two of the most critical quality control (QC) stages. The APCW-3015-Combo Combination Metal Detector and Checkweigher is a modern “2-in-1” integrated solution that performs both operations simultaneously on a single conveyor line, maximizing space savings and optimizing capital expenditure for businesses.

What is the APCW-3015-Combo Combination Metal Detector and Checkweigher?

The APCW-3015-Combo is a multi-functional quality inspection system combining a high-speed dynamic checkweighing module and an electromagnetic wave metal detection module. By integrating both functions on a single compact chassis, the equipment automatically detects under/overweight or metal-contaminated products before they reach the market.

Automated Operating Process:

  • Product Conveying: The conveyor transfers products through the weighing station.
  • Weight Inspection: The dynamic electronic weighing system measures real-time weight and compares it against pre-set target thresholds.
  • Metal Detection: Products continue through the electromagnetic wave aperture frame to scan and detect hidden metal fragments.
  • Sorting & Rejection: If a product violates weight specs or contains metal contaminants, the system instantly triggers an automatic rejection mechanism.

Applications

The APCW-3015-Combo integrated system is widely used across various manufacturing industries:

  • Food & Pharmaceuticals: Weight verification and metal detection in confectionery, canned foods, processed foods, blister packs, and health supplements.
  • Textiles, Footwear & Toys: Detecting broken needles, metal wires, or mechanical impurities in apparel, fabrics, and children’s toys.
  • Chemicals & Consumer Goods: Inspecting pouched, boxed, or bottled products in cosmetics, paper, and personal hygiene.
  • Electronics & Recycling: Inspecting electronic components and recycled materials.
  • Detectable Metals: Accurately detects metal contaminants, including ferrous, copper, brass, aluminum, tin, and stainless steel.

Technical Specifications

Item Specification
HMI Interface 7-inch TFT touch screen (10-inch optional)
Machine Frame Dimensions 1400 × 300 mm
Weighing Table Dimensions 500 × 300 mm
Rejection Conveyor Dimensions 700 × 300 mm
Preset Channels 15 channels (Customizable)
Detection Accuracy Fe: 1.0 mm | Cu: 1.5 mm | Stainless Steel (SUS): 1.5 mm
Conveyor Speed 20 – 30 m/min
Detection Method Electromagnetic wave
Rejection Method

1. Pusher

2. Air blast

3. Drop belt

4. Alarm stop machine
Power Supply 220V / 50Hz

Key Features

  • Space-Optimized “2-in-1” Integration: Combines checkweighing and metal detection into a single system, significantly saving factory floor space.
  • Flexible Rejection Options: Offers 4 defect rejection methods (pusher, air blast, drop belt, or alarm stop) tailored to different packaging formats.
  • Visual Data Analytics: Screen supports visual graphical charts analyzing pass-rate trends for real-time quality monitoring.
  • 3-Level Security Access: 3-tier user authority management with custom passwords ensures operational data security.
  • Multi-Recipe Storage: Stores parameters for multiple product types, enabling rapid recipe changeovers.
  • VFD Motor Control: Easily adjust operating speeds from 20 to 30 m/min for seamless synchronization with existing production lines.

Business Benefits

  • Capital & Space Savings: Reduces procurement costs compared to buying two separate machines while optimizing shop floor layout.
  • Comprehensive Quality Control: Fully eliminates risks of shipping underweight products or items containing hazardous metal contaminants.
  • Standards Compliance: Meets international quality control standards such as HACCP, ISO 22000, GMP, and BRC.
  • Effortless Data Management: Supports real-time production statistics and yield tracking for effective production management.

Why Choose ETEK?

ETEK specializes in:

  • Comprehensive turnkey packaging automation solutions.
  • Customized system consultation, design, and integration.
  • On-site installation, commissioning, and operational training.
  • Maintenance, warranty, and genuine spare parts supply.

Our Commitment:

  • Reliable machine operation with long service life.
  • Optimized return on investment (ROI).
  • Solutions tailored precisely to your industry needs.
  • 24/7 technical support.

Contact Us for Consultation & Quotes

Let ETEK partner with your business to optimize your packaging process. Contact our Hotline at 0866 533 986 for expert advice and a detailed quotation for the Combination Metal Detector and Checkweigher.
