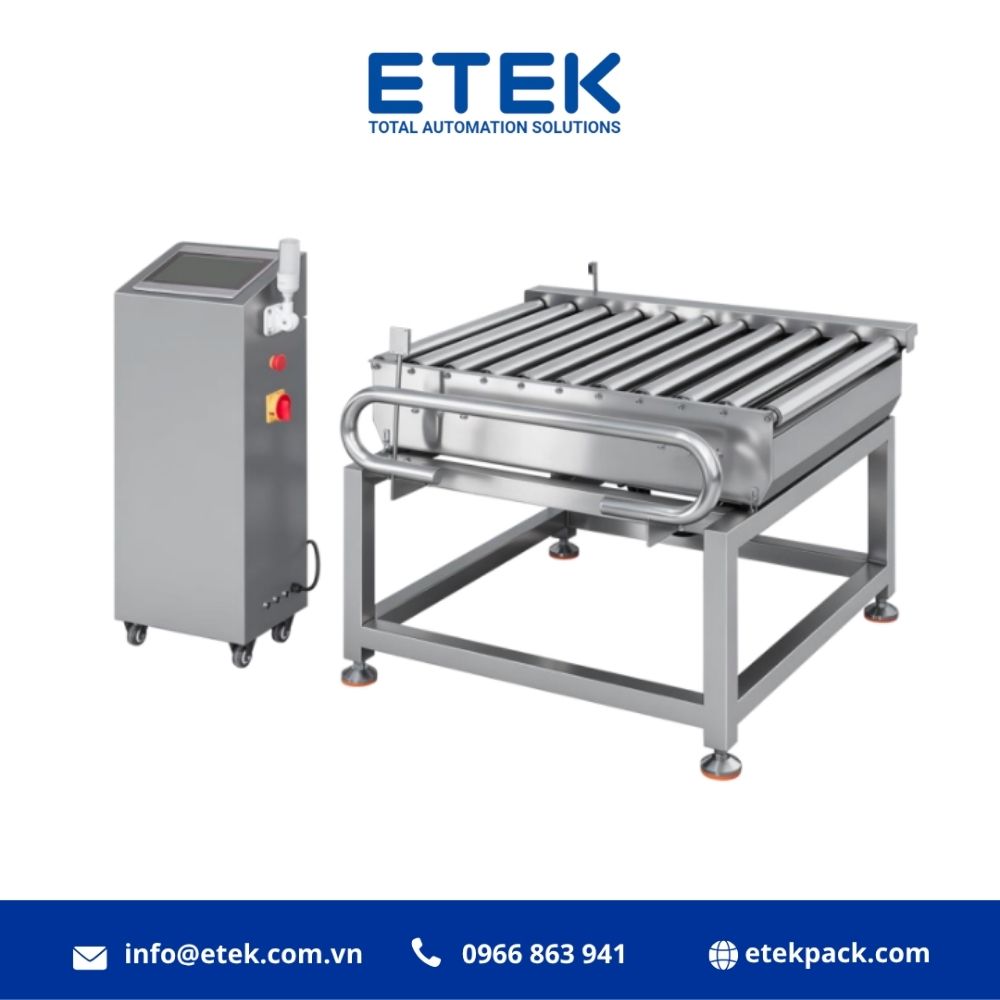

APCW-8060R Roller Conveyor Heavy-Duty Bag Checkweigher

In the packaging and dispatching processes of heavy-duty products (such as fertilizer bags, 25kg–100kg agricultural bags, and heavy carton boxes), accurate weight control is critical to eliminating material giveaway and protecting brand reputation. The APCW-8060R Roller Conveyor Heavy-Duty Bag Checkweigher is a specialized dynamic weighing solution designed for heavy packages and bags weighing ≤100kg, enabling automated detection and rejection of off-spec items directly on the roller conveyor.

ETEK is proud to deliver genuine, turnkey APCW-8060R roller checkweigher solutions featuring reinforced heavy-duty construction designed for long-lasting operation in harsh industrial environments.

What is the APCW-8060R Roller Conveyor Heavy-Duty Bag Checkweigher?

The APCW-8060R is an automatic dynamic checkweigher that utilizes a specialized roller table system to convey and measure the mass of heavy bags and packages (up to 100kg) without interrupting production line flow.

Automated System Operational Workflow:

• Roller Buffer Section: The roller conveyor receives incoming bags, aligns their positioning, and establishes optimal spacing prior to the weighing table.
• Roller Weighing Section: High-capacity load cells accurately measure bag weight as it travels across the weighing rollers with minimal error margins.
• Data Analysis: The control screen compares actual real-time weight against pre-configured target recipes.
• Rejection / Alarm: If an overweight or underweight bag is detected, the system automatically triggers a heavy-duty rejection mechanism or initiates an alarm-stop for operator intervention.

Applications

Optimized for bulky, heavy-duty bagged products and packages across various industries:

• Agriculture & Fertilizer: Weight inspection for fertilizer bags (NPK, Urea), seed bags, animal feed, and aquaculture feed (25kg, 50kg, and 100kg specifications).
• Bulk Packaged Food: Inspection of rice bags, sugar bags, flour bags, and export agricultural produce in PP/Jumbo bags.
• Building Materials & Chemicals: Weight checking for cement bags, wall putty bags, and heavy bagged powder/granular chemicals.
• Logistics & Bulky Freight: Inspection of large carton boxes and heavy cargo prior to palletizing and warehousing.

Technical Specifications

Key Advantages

• Ultra-Durable Heavy-Duty Roller Construction: Reinforced roller weighing table engineered to withstand high impact and continuous heavy loads up to 100kg.
• High Precision: Margin of error of only ±50g over a total 100kg load, maintaining strict control over raw material giveaway.
• Smart 10-Inch Touchscreen: Large display clearly presents operating parameters and supports effortless data lookup and export for defective items.
• Robust Rejection System: Powerful pneumatic cylinder/pusher ensures reliable off-line rejection of 25kg–100kg bags without line jams.
• USB Data Logging: Integrated USB port allows rapid extraction of weighing logs and pass/fail statistics for quality management reporting.
• Harsh Environment Adaptability: Rigid, anti-vibration frame structure operates reliably in high-dust environments such as fertilizer, cement, and agricultural processing plants.

Business Benefits

• Eliminate Over/Underweight Shipping Risks: Ensures 100% of dispatched bags meet weight standards, preventing contract penalties and material waste.
• Labor Optimization: Automates weight checking, eliminating manual lifting and manual scale operations.
• Maximized Line Productivity: Weighing speeds of 10–20 bags/min seamlessly match the output of upstream automatic bagging machinery.
• Digitized Quality Control: Tracks total output and generates transparent quality reports via USB memory storage.

Why Choose ETEK?

ETEK specializes in:

• Comprehensive automated packaging solutions
• Custom system consulting, design, and integration
• On-site installation, commissioning, and operator training
• Maintenance, warranty, and genuine spare parts supply

Our Commitments:

• Stable equipment operation and long service life
• Optimized Return on Investment (ROI)
• Tailored solutions matching your specific industry needs
• Dedicated 24/7 technical support

Contact for Consultation and Quotation

Let ETEK accompany your business in optimizing packaging workflows. Contact our Hotline at 0866 533 986 today for expert consultation and a detailed quote for the APCW-8060R Roller Conveyor Heavy-Duty Bag Checkweigher.
