FA500 Carton Sealer
Model FA500
Phân loại Máy dán thùng bán tự động
Tốc độ băng tải 20 m/phút
Kích thước máy (L×W×H) 1000 × 900 × 1270 mm
Trọng lượng máy 170 kg
Nguồn điện vận hành 220V / 380V, 50 Hz
- Hotline 1: 0866 533 986
- Hotline 2: 0965 800 166

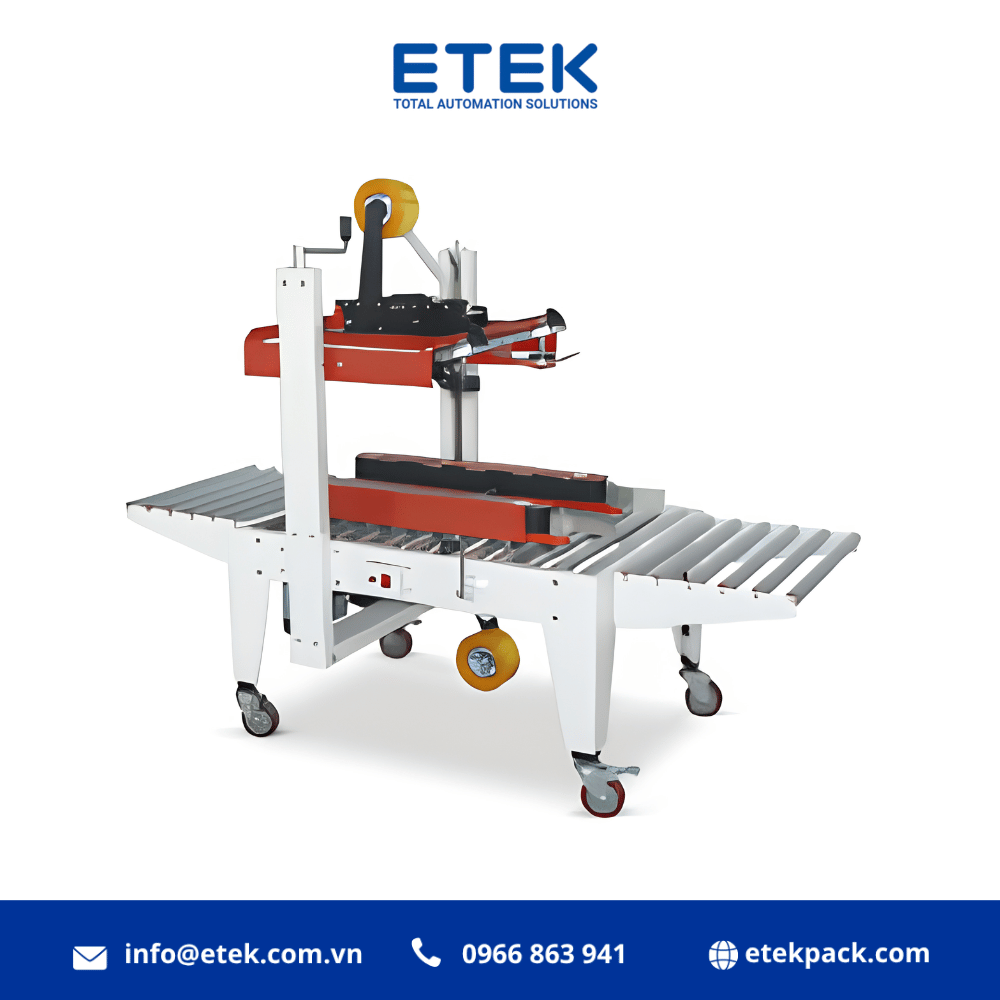

The FA500 carton sealer is a specialized packaging solution designed to automatically apply adhesive tape simultaneously to both the top and bottom of carton boxes in a single pass. Equipped with a bottom-side belt drive mechanism, the FA500 is the optimal choice for tall and narrow carton box formats, ensuring smooth, neat, and secure tape edges while significantly boosting packaging productivity.
Key Features of the FA500 Carton Sealer
The FA500 carton sealer features a precision-engineered design alongside outstanding capabilities:
- Simultaneous Dual-Side Taping: Automatically seals both top and bottom flaps in a single cycle, maximizing savings in time and labor.
- Side-Belt Drive System: Lower side-mounted belts drive the boxes smoothly and stably at speeds reaching 20 m/min, making it particularly suitable for tall, narrow cartons.
- Flexible & Easy to Adjust: Operators can effortlessly adjust the sealing height and width manually for each batch.
- High-Grade Imported Components: Core mechanical components and electrical parts are imported from Taiwan, ensuring durability and stable, long-term operation.
- Line Integration Capability: Highly compatible and easily integrated into existing automated factory packaging systems.
Technical Specifications of the FA500 Carton Sealer
| Parameter | Technical Specification |
| Model | FA500 |
| Classification | Semi-automatic carton sealer |
| Conveyor Speed | 20 m/min |
| Min. Box Size (L × W × H) | 150 × 120 × 130 mm |
| Max. Box Size (L × W × H) | L∞ × 500 × 500 mm (L∞: Unlimited length) |
| Tape Width | 48 – 72 mm (BOPP, self-adhesive Kraft paper, etc.) |
| Suitable Box Weight | Up to approx. 25 kg |
| Machine Dimensions (L × W × H) | 1000 × 900 × 1270 mm |
| Machine Weight | 170 kg |
| Power Supply | 220V / 380V, 50 Hz |
| Compressed Air Requirement | Not required (Reduces operating costs) |
Why Choose the FA500 Carton Sealer?
- Energy & Cost Savings: Operates entirely on standard electrical power (220V/380V) without requiring complex compressed air lines.
- Enhanced Aesthetics: Applies tape tightly and smoothly without wrinkles or peeling, protecting goods during storage and transport.
- Simple Operation: Features an intuitive adjustment interface; workers can master the equipment with only a few minutes of instruction.
Which Businesses is the FA500 Suitable For?
The FA500 semi-automatic carton sealer is a smart investment for:
- Small & Medium Enterprises (SMEs): Businesses needing to optimize initial capital expenditure while maintaining accuracy and aesthetic quality for their packaging.
- Batch Production Units: Facilities packaging items with consistent box sizes per production run.
- Specific Product Types: Ideal for tall, narrow boxes weighing up to approximately 25 kg.
- Versatile Tape Compatibility: Flexible use with popular adhesive tapes on the market, such as BOPP or self-adhesive Kraft paper tape.
ETEK – Professional Carton Sealing Machinery Provider in Vietnam
With over 20 years of experience, ETEK Automation Solutions JSC is a leading provider of automated packaging equipment and solutions in Vietnam. Choosing the FA500 carton sealer from ETEK guarantees authentic products, high-quality imported components, cost-effective solutions, and professional on-site consulting, installation, and warranty services.
Contact Hotline 0866 533 986 for solution consultations and the best discount quotes from ETEK.
