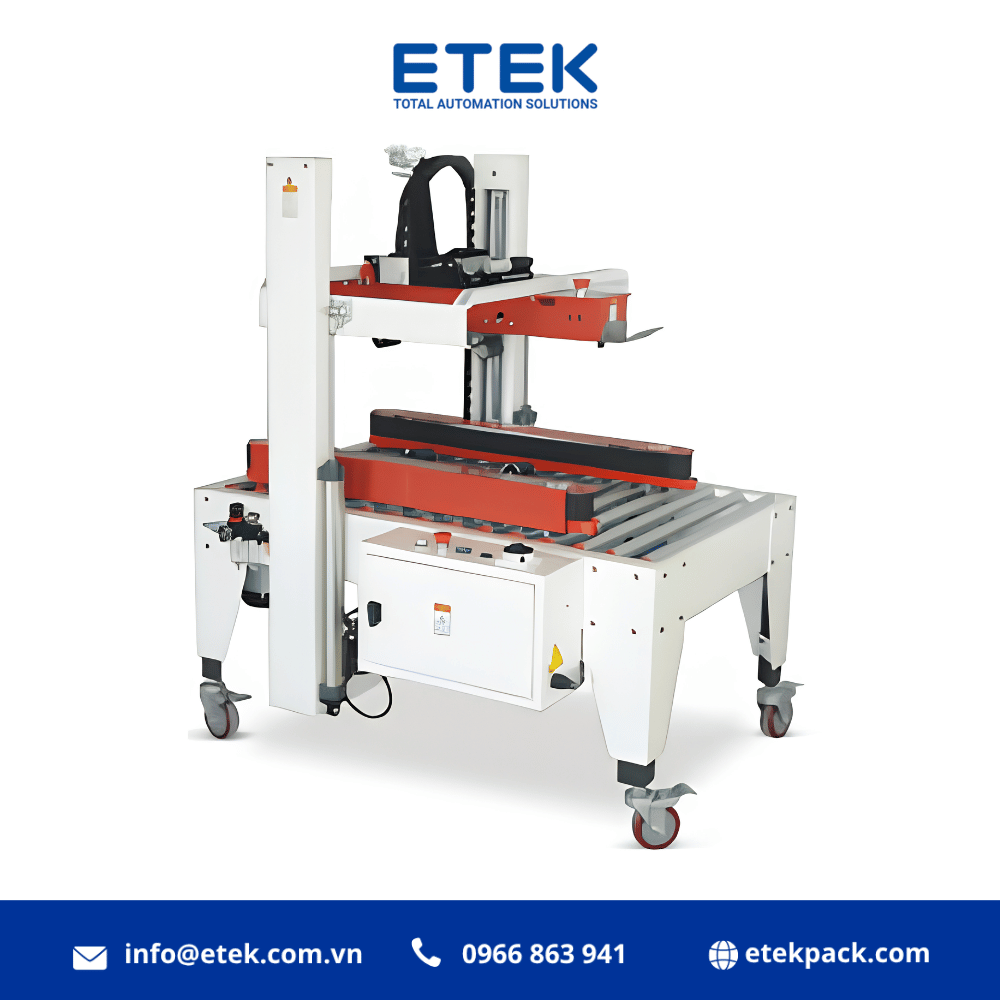

FE500 Automatic Carton Sealers
Model FE500
Classification Random automatic size adjustment
Conveyor Speed 20 m/min
Applicable Tape Width 48 – 72 mm (BOPP, self-adhesive Kraft paper, etc.)
Machine Dimensions (L × W × H) 1160 × 980 × 1245 mm
Machine Weight 250 kg
Power Supply 220V / 380V, 50 Hz
- Hotline 1: 0866 533 986
- Hotline 2: 0965 800 166
The FE500 carton sealer belongs to the random automatic case sealer category, completely solving the challenge of packaging mixed box sizes on the same production line. Integrating smart sensors and pneumatic systems, the FE500 automatically measures and adjusts its height and width according to each passing carton, completely eliminating the need for manual operator intervention.
Key Features of the FE500 Carton Sealer
The FE500 model elevates packaging automation through a range of modern technological advantages:
- Instant Automatic Size Adjustment: Smart sensors identify the box dimensions upon contact, working with pneumatic cylinders to automatically expand/contract the width and adjust the height to fit each carton perfectly.
- Stable Lower Side-Belt Drive: Dual lower side-mounted belt systems securely hold cartons and drive them smoothly at speeds up to 20 m/min, making it particularly well-suited for narrow and tall cartons.
- Simultaneous Top & Bottom Sealing: Automatically applies tape to both top and bottom flaps in a single pass, delivering smooth, aesthetic, and taut tape lines.
- High-Grade Taiwanese Components: Core mechanical parts along with electronic and pneumatic components are imported directly from Taiwan, ensuring durable machine operation under high duty cycles.
- Seamless Line Integration: Modular design offers flexible setup, ready for direct integration into existing factory automated conveyor systems.
Practical Applications of the FE500 Carton Sealer
The FE500 model is a strategic investment for businesses facing multi-SKU packaging challenges:
- Fulfillment Centers, E-Commerce & Logistics: Ideal for facilities with continuous order flows where carton dimensions change randomly with each order.
- Multi-SKU Manufacturing Plants: Eliminates downtime spent manually adjusting machines when switching shifts or box codes.
- Tall & Narrow Packaging Operations: The side-belt conveyor system holds cartons firmly, preventing tipping or tape misalignment during operation.
Technical Specifications of the FE500 Automatic Case Sealer
| Parameter | Technical Specification |
| Model | FE500 |
| Classification | Random automatic size adjustment |
| Min. Box Size (L × W × H) | 150 × 120 × 130 mm |
| Max. Box Size (L × W × H) | L∞ × 500 × 500 mm (L∞: Unlimited length) |
| Conveyor Speed | 20 m/min |
| Applicable Tape Width | 48 – 72 mm (BOPP, self-adhesive Kraft paper, etc.) |
| Machine Dimensions (L × W × H) | 1160 × 980 × 1245 mm |
| Machine Weight | 250 kg |
| Power Supply | 220V / 380V, 50 Hz |
| Pneumatic Requirement | 6 kgf/cm²; 80 L/min |
Purchase Authentic Automatic Carton Sealers at ETEK
Holding a pioneering position in industrial automation for over two decades, ETEK takes pride in being a strategic partner for hundreds of factories across Vietnam. Choosing the FE500 automatic case sealer supplied by ETEK ensures complete peace of mind regarding product origin, equipment durability, and optimal investment cost. ETEK commits to accompanying customers from configuration consulting and on-site installation to rapid post-sales and warranty services.
Contact ETEK Hotline 0866 533 986 to receive the latest quotes and promotional offers!
